Description
The FMC FRU EEPROM Programmer and the related toolchain is a powerful programming tool for FMC FRU (Field Replacable Unit) records.

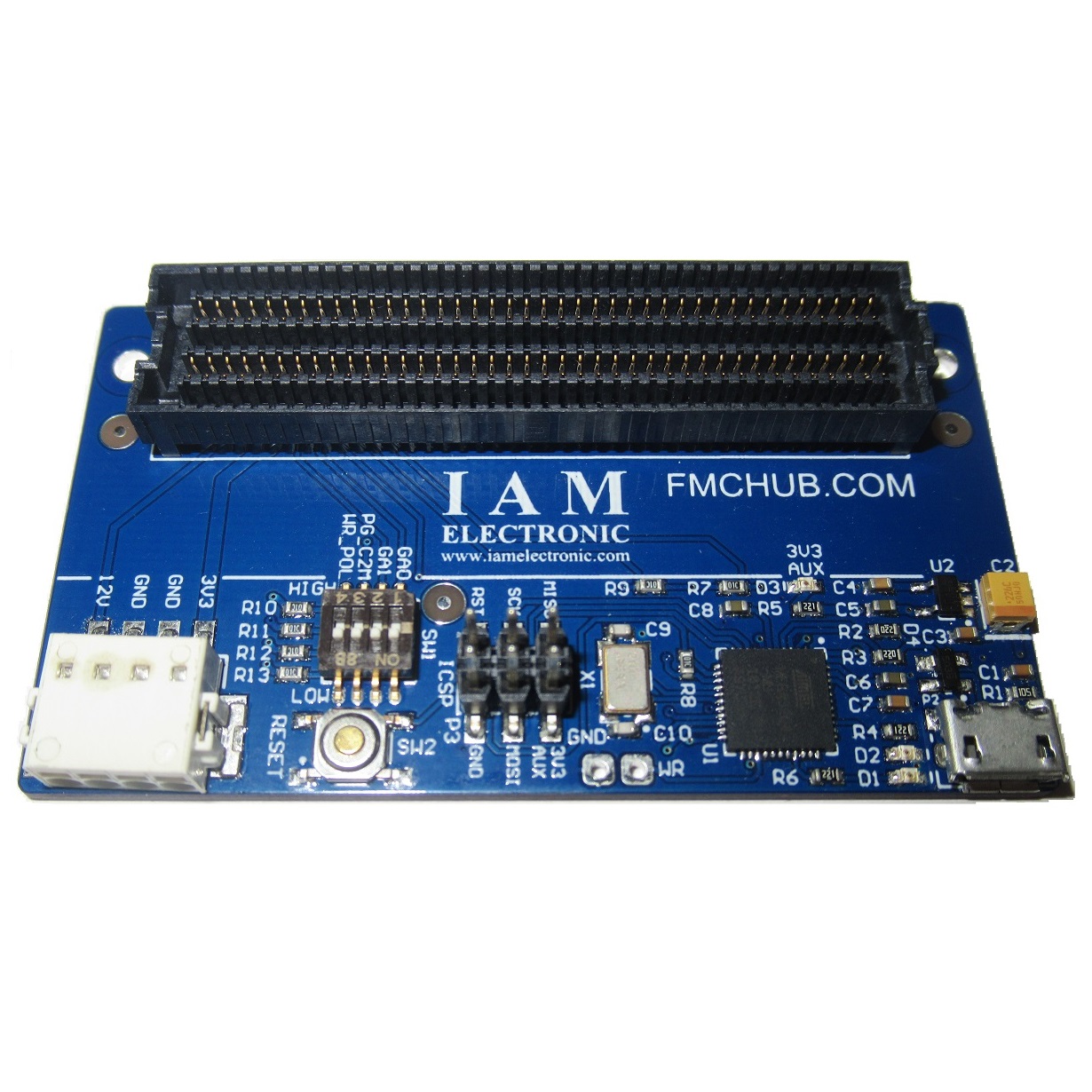

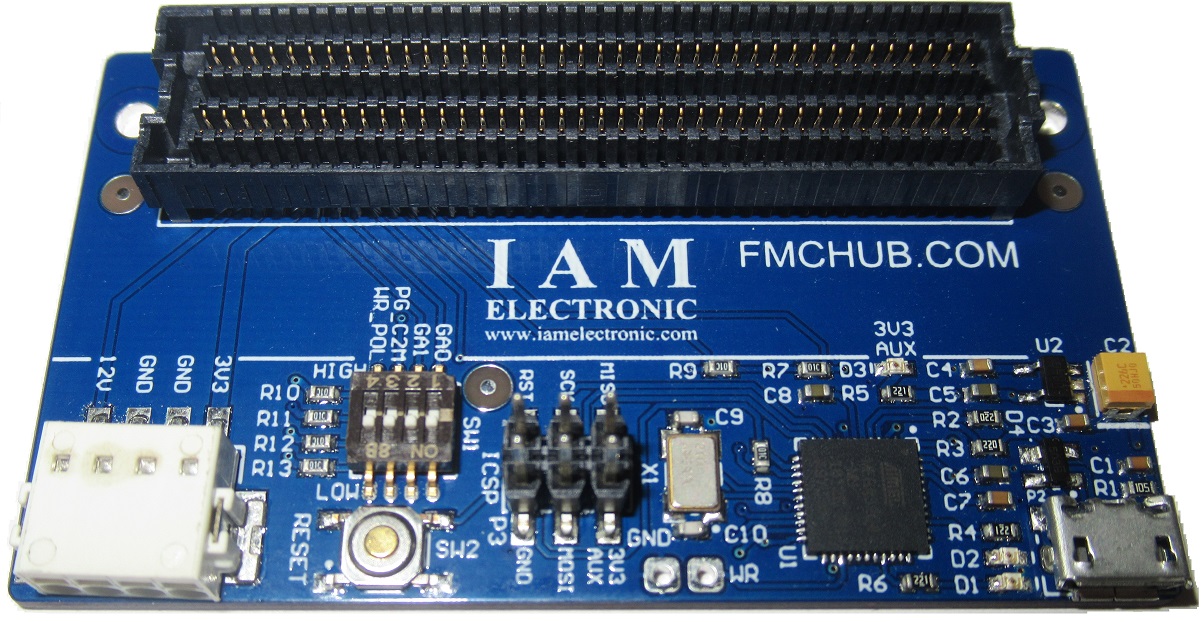

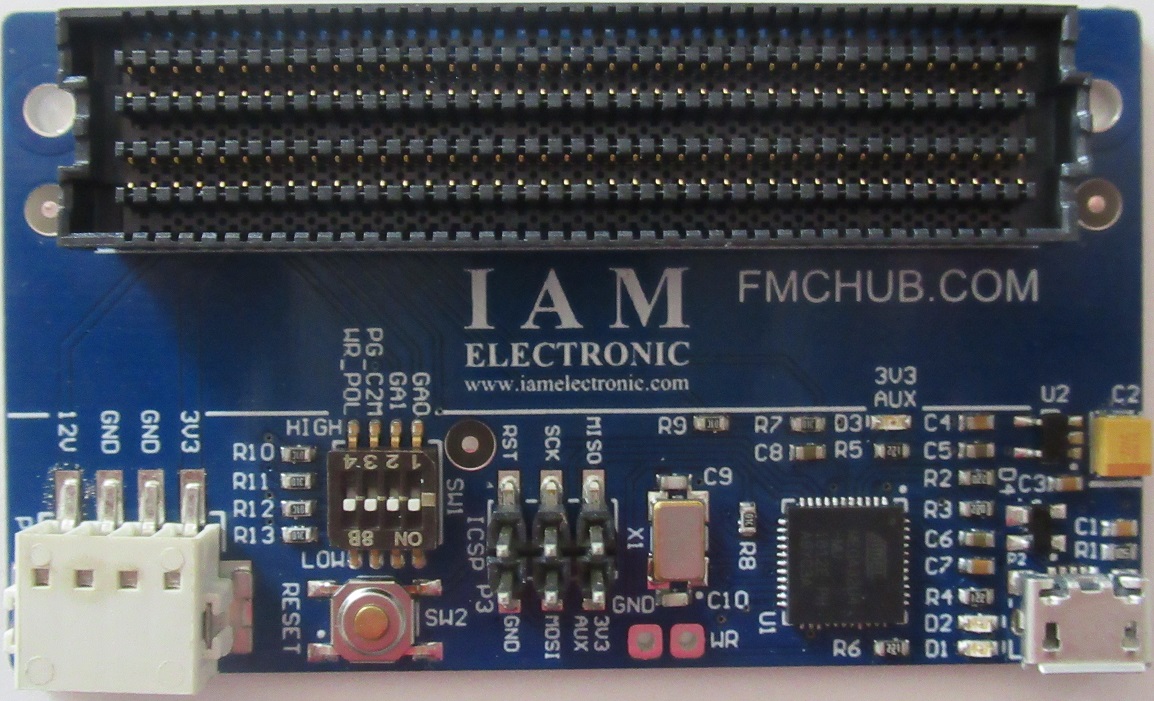

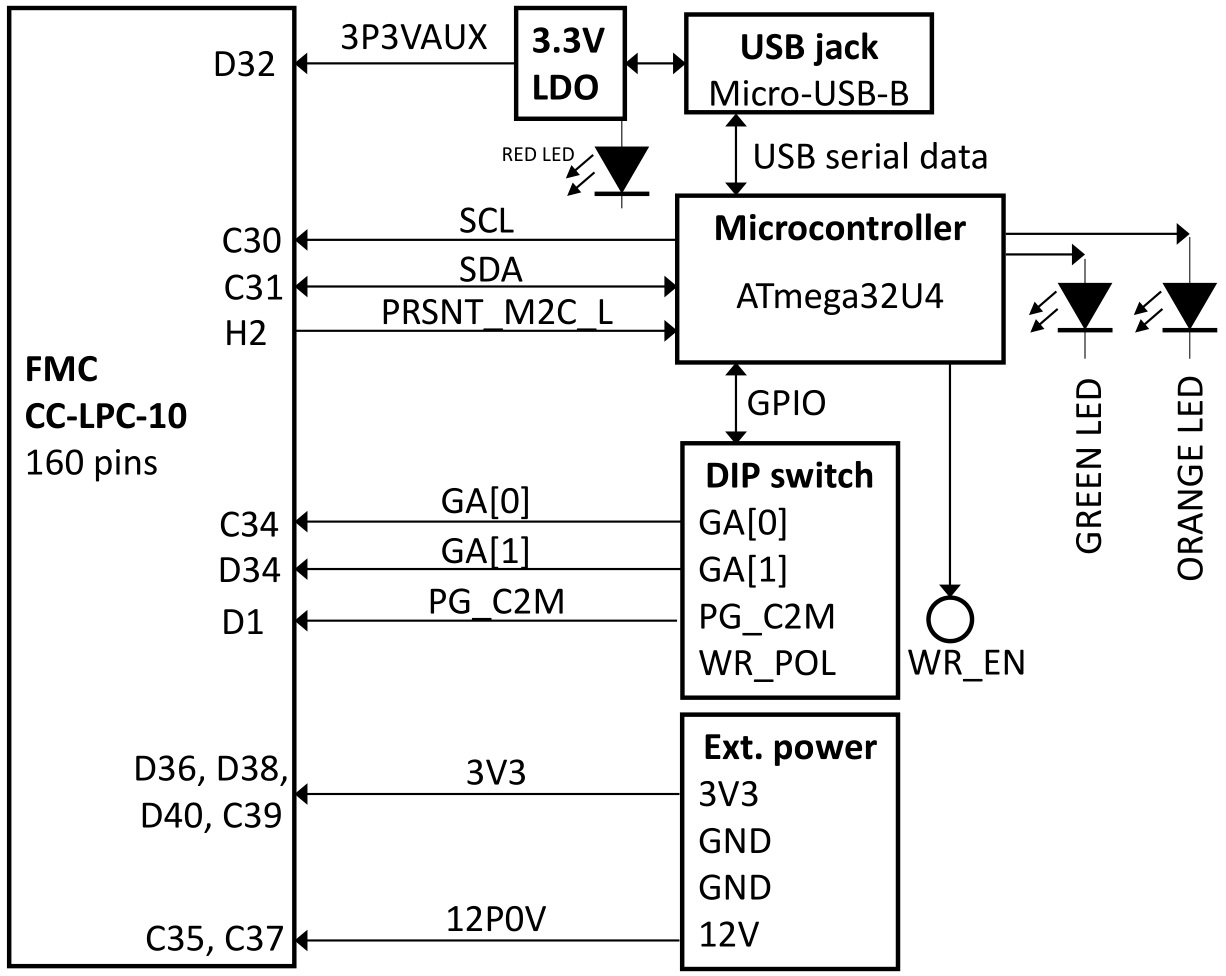

The programming adapter is designed for in-circuit configuration of ANSI/VITA 57.1 FPGA Mezzanine Cards (FMC) according to the IPMI Platform Management FRU Information Storage Definition. The board runs with open-source firmware and software for user-friendly configuration of I2C-compatible serial EEPROMs. Its microcontroller (Microchip ATmega32U4) translates a user command protocol from the serial interface into corresponding I2C read/write accesses to any compatible EEPROM devices. A user application on the PC host simplifies file transfers to the EEPROM via a USB cable. By eliminating the need for customer-specific FPGA firmware to program an FMC module, the standalone programming adapter is suitable for reliable small-batch production and prototyping.
Applications
-
Small batch FMC module programming
-
Compliance and production tests
-
Professional production of FMC boards
-
Prototyping of FMC modules
Features
- Easy FMC FRU EEPROM programming and readout

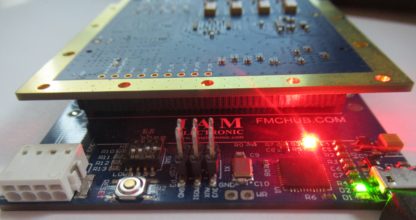

- In-circuit configuration of FRU records
- Supports I2C EEPROMs with 1 byte and 2 byte addressing
- Fully open-source product
- USB serial port device
- USB powered 3P3VAUX voltage rail
- External power supply for 12 V and 3.3 V voltage rails
- Write enable/protection output
- Selectable GA[1:0] addressing pins
- Selectable PG_C2M flag
- AVR ISP programming header
Online Datasheet: FMC FRU EEPROM Programmer datasheet
